SQ08600N

SQ08600N

SQ-Series Tactile Domes

Availability: Available on backorder SKU: SQ08600N Category:
snaptroninc-logo

Description

Part Number

SQ08600N

Diameter

8.50mm (0.335″)

Height

0.53mm (0.021″)

Trip Force

600g

Dimple

No

Life Cycle

Up to 10,000,000

DOME-SQ-TOP-2

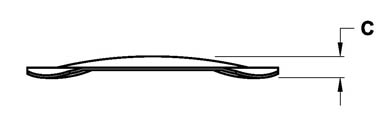

SQ-C-DIM-Drawing
Dim. A 8.50mm (0.335″)
Dim. B 7.01mm (0.276″)
Dim. C 0.53mm (0.021″)
Dim. X (dome cavity) 7.75mm (0.305″)
Fmax/Force 600g, +/- 30 grams or 10% of trip force typical
Contact Configuration SPST N.O.
Switching Voltage 0.1 to 50 VDC
Switching Capacity 1 Watt
Switching Current 0.005 to 100 ma DC
Contact Bounce <.3ms make <.6ms break
Base Material SSTL
Plating Nickel
Operating Temp Rating -45 degrees C to +100 degrees C
Storage Temp Rating -55 degrees C to +100 degrees C
