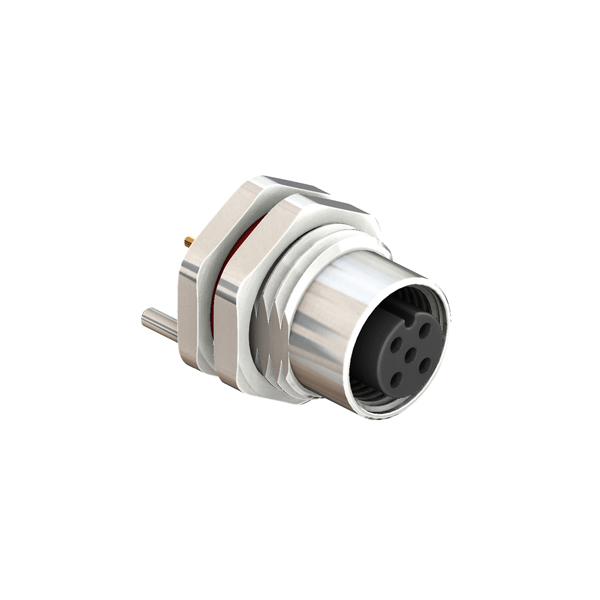

120512-XXS-FA-PBSX(M Series)

Type: M Series
Current rating: 4A(3、4、5Pin);2A(8Pin);1.5A(12Pin)
Voltage rating: 250V(3、4Pin);60V(5Pin);30V(8、12Pin)
Contact resistance:≤5mΩ
Insulation resistance:≥100MΩ
Operating temperature:-25℃~90℃
Material plating:

• 1. Insulator: PA+GF
• 2. Connector contacts: Brass Gold Plated
• 3. Connector Nut/Screw: Brass Nickel Plated
• 4. Seal/O-Ring: Epoxy resin/FKM
