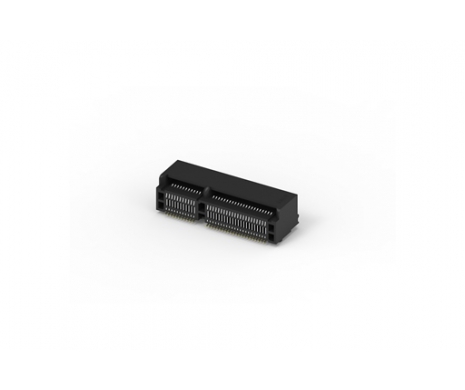

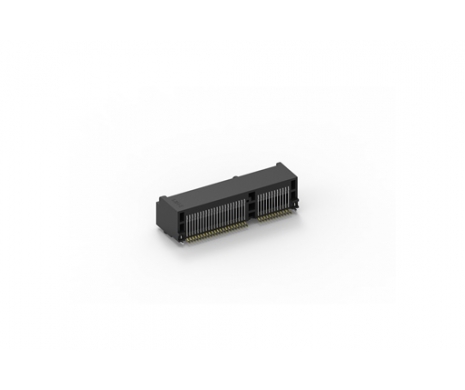

123A-58E01

123A-58E01

M.2 connector, also known as the Next Generation Form Factor (NGFF) is originally designed for the ultra-thin products. Its compact size could save over 20% of PCB design space compare with mini PCIe connector. M.2 connector applies to high-speed data transmission that supports PCI Express 3.0, SATA 3.0 and USB 3.0.

Attend Recovered

Description

MAIN FEATURES

ATTEND EDM M 2 Connector 210524 02
Miniature in Size:
Compared with Mini PCI Express, M.2 saves 25% in heights and 55%
in which sufficiently save the space of the PCB layout.
There are two key dimension need to check.
  • Dim. A:The heights are between min- 2.1mm to max- 8.5mm.
  • Dim. B:For double-sided modules, this height is also important to keep in mind.
shutterstock 305429327 scaled
Application:
  • SSD Module
  • Wi-Fi Module
  • NAS
  • Tablets
  • Gaming
  • Servers

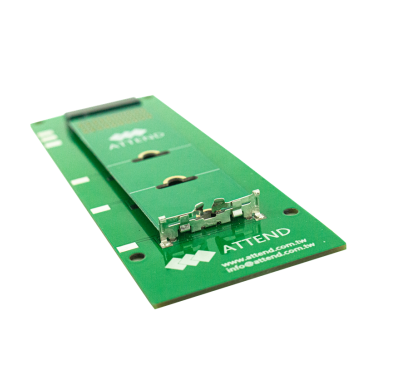

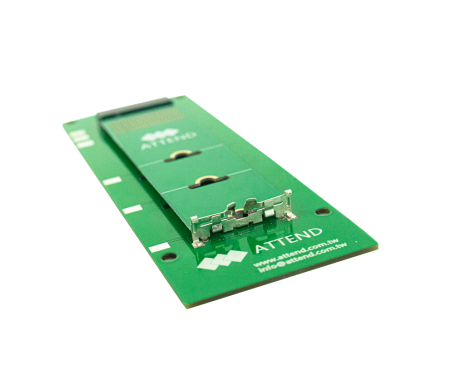

DEMO KIT操作圖檔 021 scaled
DEMO KIT操作圖檔 031 scaled
ATTEND EDM M 2 Connector 210705 021 scaled

SPECIFICATION

ELECTRICAL

Current Rating 0.5A per pin
Voltage Rating 50VAC
Contact Resistance 55mΩ, Δ20Ω Max.
Insulation Resistance 500MΩ
Dielectric Withstanding Voltage 300VAC

MECHANICAL

Durability 60 Cycle
Mating Force 20N max.
Un-mating Force 20N max.

ENVIRONMENTAL

Operating temperature range -40℃~+85℃
Storage temperature range -40℃~+85℃

SOLDER ABILITY

Recommended IR Reflow(Wave Soldering) Temperature 260℃
