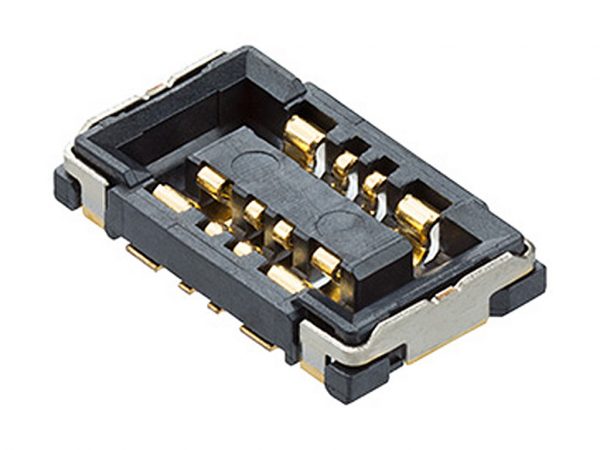

SlimStack Board-to-Board Receptacle, 0.40mm Pitch, Battery Series, 0.75mm Mated Height, 2.50mm Mated Width, 8 Circuits, 6.0A



Status Active
Category PCB Receptacles
Series 505004
Application Board-to-Board
Comments * 6A of current per circuit is applicable if the circuit is constructed by two power pins via a PWB/FPC circuit
Overview SlimStack Board-to-Board/Board-to-FPC Connectors
Product Name SlimStack
Series Name 6A, Battery
UPC 191128441094


(p)ower-(s)ignal Configuration 4p – 4s
Circuits (Loaded) 8
Circuits (maximum) 8
Color – Resin Black
Durability (mating cycles max) 10
Glow-Wire Capable No
Lock to Mating Part Yes
Mated Height 0.75mm
Mated Width 2.50mm
Material – Metal Copper Alloy
Material – Plating Mating Gold
Material – Plating Termination Gold
Material – Resin Liquid Crystal Polymer
Net Weight 10.820/mg
Number of Rows 2
Orientation Vertical
PCB Locator No
PCB Retention Yes
Packaging Type Embossed Tape on Reel
Pitch – Mating Interface 0.40mm
Pitch – Termination Interface 0.40mm
Plating min – Mating 0.100µm
Plating min – Termination 0.050µm
Polarized to Mating Part No
Polarized to PCB No
Temperature Range – Operating -40° to +85°C
Termination Interface: Style Surface Mount


Current – Maximum per Contact 0.3A, 3.0A*
Voltage – Maximum 50V AC (RMS)/DC
