714360164

714360164

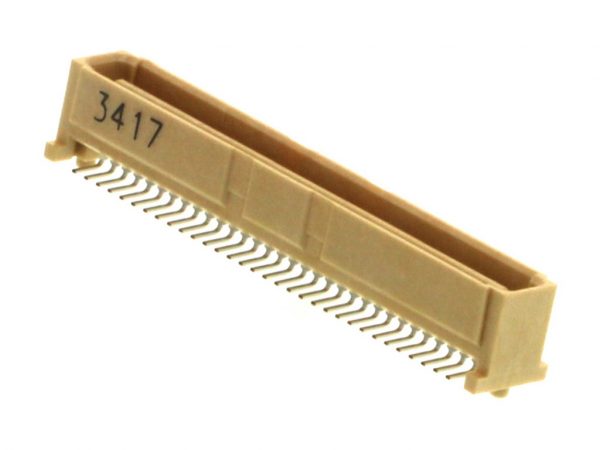

1.00mm Mezz (IEEE 1386) Plug, Surface Mount, Dual Row, Vertical Stacking, 64 Circuits, 6.35mm Unmated Height, with PCB Locator Pegs, without Robotic Placement Metal Cap, Tube Packaging

Description

General

Status Active
Category PCB Headers
Series 71436
Application Board-to-Board, Signal
Overview 1.00mm Mezzanine (IEEE 1386)
Product Name 1.00mm Mezzanine (IEEE 1386)
UPC 800754349819

Physical

Breakaway No
Circuits (Loaded) 64
Circuits (maximum) 64
Color – Resin Natural
Flammability info 94V-0
Glow-Wire Capable No
Lock to Mating Part None
Mated Height 8.00mm
Material – Metal Phosphor Bronze
Material – Plating Mating Gold
Material – Plating Termination Tin
Material – Resin High Temperature Thermoplastic
Net Weight 1.163/g
Number of Rows 2
Orientation Vertical
PCB Locator Yes
PCB Retention None
PCB Thickness – Recommended 1.00mm
Packaging Type Tube
Pitch – Mating Interface 1.00mm
Plating min – Mating 0.762µm
Plating min – Termination 1.905µm
Polarized to Mating Part No
Shrouded Fully
Stackable No
Temperature Range – Operating -55° to +85°C
Termination Interface: Style Surface Mount

Electrical

Current – Maximum per Contact 1.0A
Voltage – Maximum 100V
