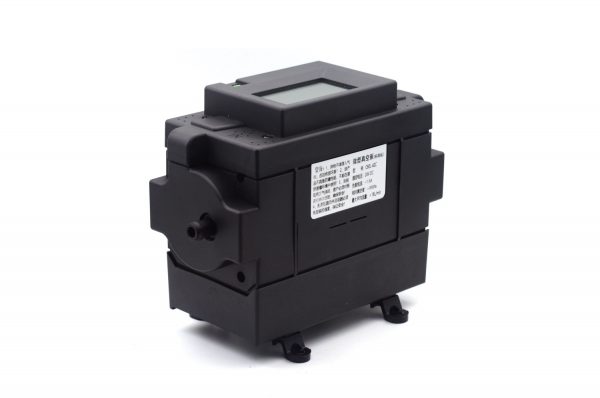

C60 Diaphragm Mini Air Pump Vacuum

C60 Diaphragm Mini Air Pump Vacuum

C60 is a brushless electric diaphragm pump with large flow, high vacuum and long service life.It is driven by a 24V brushless DC  motor, EPDM or FKM can be used as elastomer material. Flow can be controlled by electronic signals.

Category: Tags: ,


Overall Descriptions

C60 is a durable electric diaphragm pump vacuum, equipped with BLDC motor.  it is powered by 24 volt DC. This model have a big and controllable flow-rate, which is used for long-distance and large-flow gas sampling and negative pressure suction. This diaphragm pump can be configured with different pneumatic connectors and materials of elastomer.

Working Status Indicator

Only the remote control type and basic type are equipped with working status indicator lights, which can visually feed back the working status of the pump. The touch control type and top configuration type are equipped with an LCD touch screen that can display working status and fault codes.

Brush-less DC Motors

This model is driven by brush-less motors which have the advantages of long service life, low interference and high reliability.

Diaphragm Pump with High Pump Vacuum

Its maximum relative vacuum can reach -88kPa, and the flowrate can be adjusted by adjusting the motor speed. Hilintec can also provide a higher flow-rate product selection under the same product dimensions, please refer to C61 Mini Vacuum Pump

Pump Diaphragm Options

Its diaphragm and check valves can be made of EPDM or FKM according to the requirements of the medium. Together with the PA6 pump head, it has good corrosion resistance.


Equipped with overheating protection, overload protection, power supply under-voltage and over-voltage protection and reverse connection protection function, which to the greatest extent prevents accidental damage to the pump.

Modular Pneumatic Connectors

The design of this series of pumps adopts modular connectors,using non-detachable reinforced nylon hose connectors as standard accessory.Customers can also choose Rc1/8 internal thread interface (materials can be reinforced nylon or stainless steel). This interface can be used with PC6 or PC8 stainless steel quick-change connectors, plastic (PP) hose connector, and stainless steel hose connectors.

The standard non-detachable reinforced nylon hose connectors and stainless steel hose connectors are recommended to be used with 7*13mm hoses; there are two options for quick-change connectors, matching hard tubes with outer diameters of 6mm and 8mm; plastic hose connectors are recommended to match 6*10mm hoses; customers can choose corresponding pneumatic connectors when ordering according to the specific pipeline situation. For ordering options, see section 3.5.
