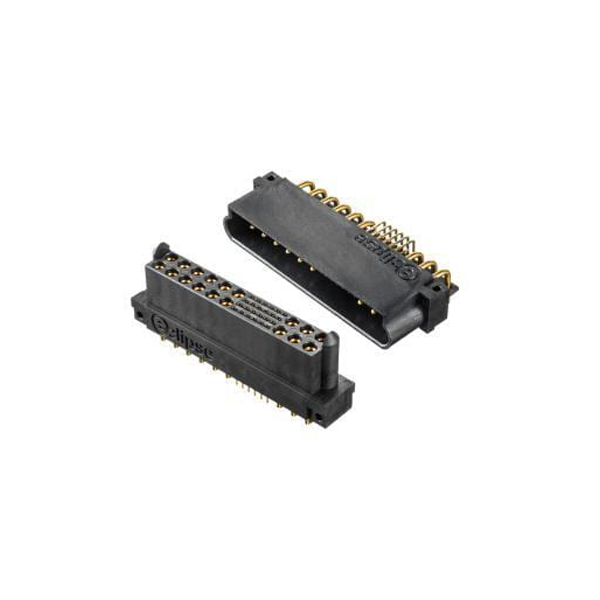

EC Series

EC Series

The Eclipse offers machined power contacts for world-class current density paired with a cost-effective formed signal contact cluster. Retain the performance without the cost implications.

Description

General

Part Number Prefix EC
Performance Level Industrial
Qualifications UL (in process), RoHS 5/6 (6/6 on select parts)
RoHS Compliance RoHS 5/6 (6/6 on select parts)

Materials

Insulator Material LCP (halogen-free)
Insulator Color Black
Flammability Rating UL 94V-0
Contact Material Copper Alloy
Contact Plating Gold flash, 0.76µm Au, 1.27µm Au

Electrical

Insulator Resistance (GΩ) 5.0
Proof Voltage (V rms) Signal – 1000, Size 16 – 1750, Size 8 – 2200
Working Voltage (V rms) Signal – 300, Size 16 – 600, Size 8 – 700
Initial Contact Resistance (mΩ, max) As low as 1
Contact Current Rating (A) Up to 20

Mechanical

Shape Rectangular
Body Style PCB mount
Insulator Construction Monoblock
Polarization Method Insulator
Locking System Optional
Blind Mating Included
Clearance and Creepage (mm min) 1.00
Contact Style Fixed
Contact Size #8, #16, Signal
Female Contact Design LSA (power), Formed (signal)
Contact Retention Mechanism Press-in
Contact Retention (N) 4.9 to 66.7
Contact Termination PCB
Mating Cycles 250

Environmental

Temperature Range (ºC) -55 to 125
Lead Free Solder Process Yes
