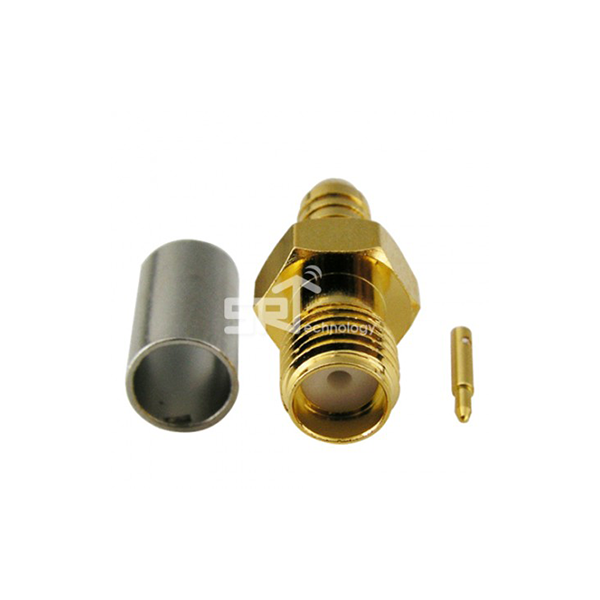

RP SMA (F/ B-F, P-M) LMR200, RG58
- PN : A01-F1101-11
- Reverse Polarity connector for RFID and USN.
- Cable Assembly work with other connectors available.
- LMR 200 and RG 58 cable can be used.
- Reliable cable assembly specification.
- MOQ : 100EA
- SPECIFICATION DOWNLOAD
- Description
Description
Description
Electrical specification
| Item | Specification |
| Frequency range | DC ~ 1 GHz |
| Impedance | 50Ω |
| VSWR | 1.30Max |
| Insulation Resistance | 5,000 MΩ Min |
| RF Leakage | -60dBm Min., 2~3GHz |
| Interface | MIL-C-39012 |
| Vibration | MIL-STD-202 |
| Shock | MIL-STD-202 |
| Durability | 500 Mating |
| Coupling Nut Torque | 12 Ncm – 170 Ncm |
| Temperature | -65°C ~ +85°C |
| RoHS | Compliance |
Material specification
| Item | Specification |
| Body & Coupling Nut | Brass / Gold plating |
| Center contact | Be-Cu / Gold plating |
| Insulator | PTFE |
| Ferrule | Brass / Nickel plating |
| Cable Type | LMR200, RG58 |
