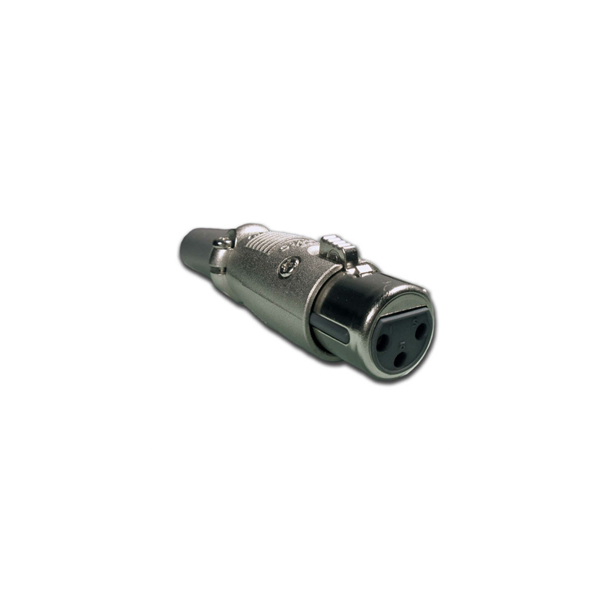

XLR

XLR

Product Description

ITT broad range of XLR connectors are extensively used in a wide variety of audio OEM applications

Category: Tags: ,
ITT Recovered

Description

Feature:

  • Rugged design to withstand extreme field use
  • Resilient socket insultator which minimizes vibration and electrical noise
  • Quick disconnect latch lock
  • Interchangable and intermateable with XLM-PCB

Mechanical

APPLICATION / MARKET: Aerospace, Defense, Industrial, Transportation
SHAPE: Circular
SHELL STYLE: Cable connecting male and female plug, flange mount receptacle, in-series adapter
DURABILITY: 500 Mating Cycles
POWER & SIGNAL IN SAME LAYOUT: No
CONTACT STYLE / TERMINATION: Solder

Material

SHELL: Aluminum Alloy
SHELL PLATING: Nickel
INSULATOR: Socket – Chloroprene and pin Nylon
CONTACT: Copper
CONTACT PLATING: Silver

Electrical

OPERATING VOLTAGE: 133 VAC
CURRENT RATING: 5A-15A
NUMBER OF SIGNAL CONTACTS (MIN/MAX): 2-7
GAUGE WIRE SIZE: 14-20 AWG

Environmental

SEALING: Not Available
OPERATING TEMPERATURE: -30°C to +125°C
